A versatile instrument for solution‑state NMR applications

Key features

• Bruker Avance NEO console
• Multiple probe options supporting solution‑state, solid‑state and HR‑MAS experiments

Available probes

• 1H, {13C/15N/31P} solution‑state QNP probe
• 1H, 13C 4 mm HR‑MAS probe
• ¹H, X 4mm CP-MAS probe (X tunable from 15N to 31P)
• 1H, {13C/15N/31P} E‑free flat‑coil probe

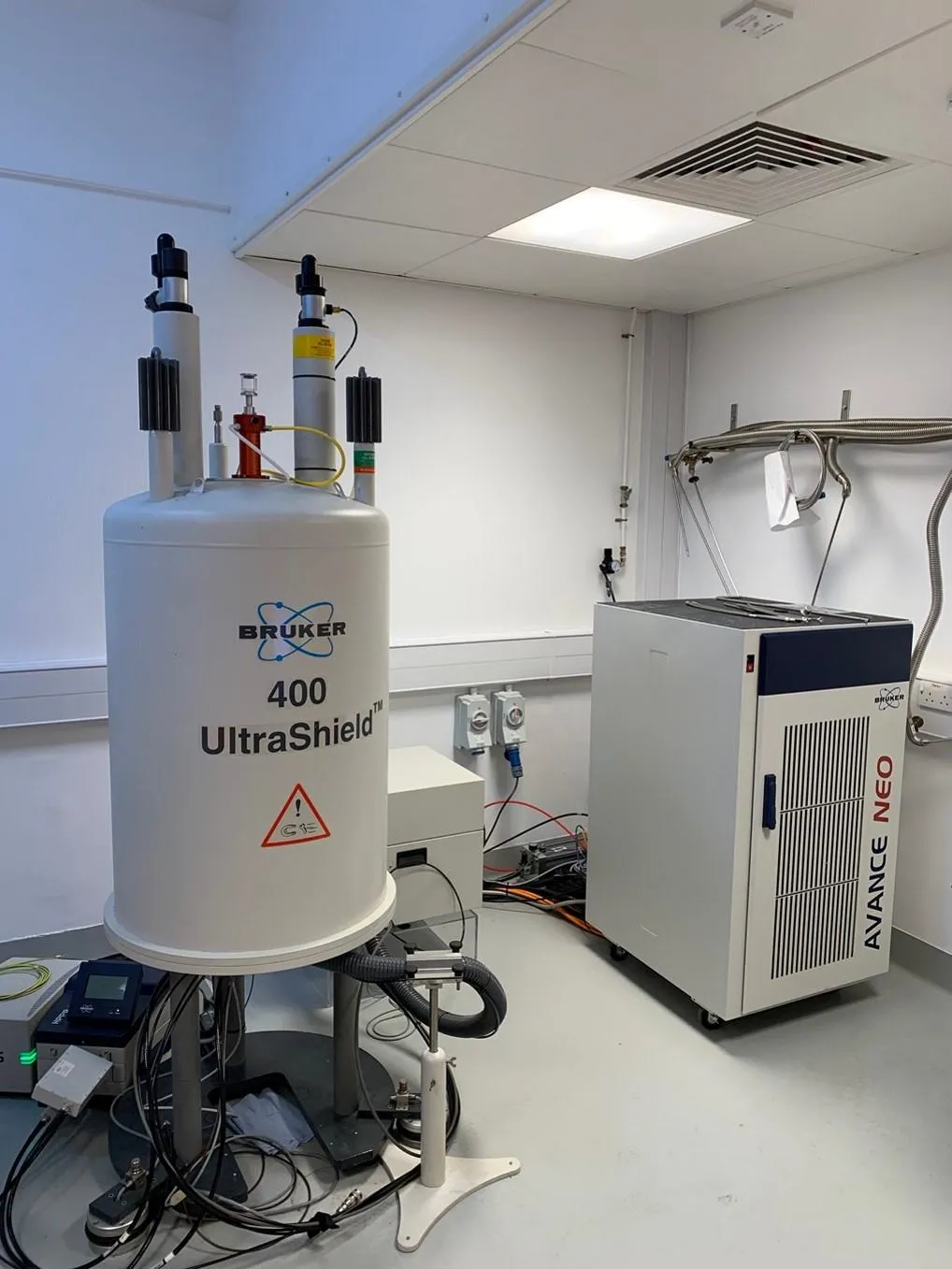

The 400 MHz NMR spectrometer is configured with a range of probes to support diverse applications. A room‑temperature inverse‑detection QNP probe enables routine solution‑state analysis of small molecules. Several solid‑state probes are available for the investigation of a wide variety of solid samples. The 4 mm double‑resonance 1H/X CP‑MAS probe supports experiments on nuclei from 15N to 31P on the X channel, enabling studies of materials, polymers, pharmaceuticals and biological samples. A 4 mm HR‑MAS probe supports metabolomic analysis of intact tissues, while the static E‑free flat‑coil probe is well suited to oriented biological samples such as lipid assemblies.
