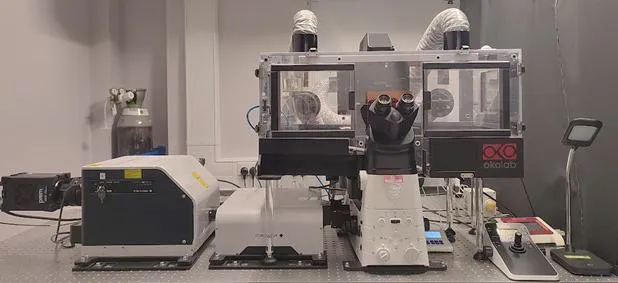

Fast confocal and super-resolution - Equipped with a Yokogawa CSU-W1 dual disk scan head. High-speed low phototoxicity confocal imaging possible, plus in the SoRa mode a resolution improvement of 1.4x compared to widefield imaging, increasing to 2x with deconvolution (XY resolution of 120 nm) is achievable.

  • Microscope: Eclipse Ti-2 inverted microscope
  • Imaging System: CSU-W1 dual disk, 25 µm confocal fluorescence & 50 µm SoRa, 2 x Photometrics Prime 95B sCMOS cameras. SoRa magnification changer 1x, 2.8x, 4x.
  • Objectives: CFI Plan Apochromat VC 20X, CFI Plan Apochromat Lambda S25xC Sil, CFI Plan Apochromat Lambda 40XC, CFI Plan Apochromat Lambda S40XC Sil, CFI Apochromat LWD Lambda S 40XC WI, CFI Plan Apochromat VC 60X WI, CFI Apochromat TIRF 60XC Oil, CFI SR HP Apochromat TIRF 100XAC Oil.
  • Laser Wavelengths: 405 nm, 488 nm, 561 nm, 638 nm
